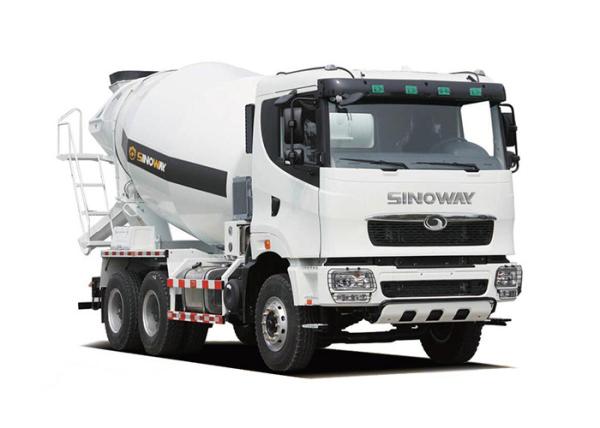

SWCM64H09 Concrete Mixer Machine 9 CBM Cement and Concrete Mixer Truck

Name: SWCM64H09 Concrete Mixer Machine 9 CBM Cement and Concrete Mixer Truck
Brand: SINOWAY
Price: 1 USD

Brand Name : SINOWAY

Model Number : SWCM64H09

Certification : ISO9001

Place of Origin : China

MOQ : 1 unit

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 50 units per month

Delivery Time : 30 days

Packaging Details : Nude

Engine : SW6D18 340 31

Rated power : 250KW

Rated speed : 1900rpm

Kerb mass : 14000kg

Pay-loading capacity : 15000kg

Geometric volume of mixing drum : 15.7m³

Contact Now

Concrete Mixer Machine 9 CBM Cement and Concrete Mixer Truck With 340HP Power

Engine
Model		SINOWAY
Type		Mechanical, four-stroke, water-cooled, in-line, four valve, direct-injection
Max. power		250kw(340hp)/1900rpm
Max. torque		1660N.m/1100-1400r/min.
Number of cylinders		6
Bore x stroke		118 x 150mm
Displacement		9.84L
Main Technical Specification
Kerb mass		14000kg
Pay-loading capacity		15000kg
G.V.W.		29000kg
Max. travelling speed		90km/h
Min. turning radius		8m
Gradeability		30%
Approach angle		30°
Departure angle		24°
Ground clearance		255mm
Fuel tank capacity		320L (galvanized steel)
Dimensions
Overall size (L x W x H)		9250 x 2500 x 3980mm
Wheelbase		3600 + 1350mm
Tread (F/R)		2065/1860/1860mm
Transmission System
Mechanical type with servo and synchronizer, 9 forward & 1 reverse
Ratio
Forward		15.49, 12.07, 8.35, 5.67, 4.07, 2.96, 2.05, 1.39, 1,00
Reverse		14.19
Mixer Drum
Geometric volume of mixing drum	15.7m³
Effective capacity		9m³
Rotation speed		0-15rpm
Feeding speed		≥ 2.7³/min.
Discharging speed		≥ 1.2³/min.
Residue rate		≤ 1.0%
Loading rate		60.0%
Inclination of mixing drum		13.5°
Materials for mixing drum		16MnCu
Model / brand /origin of pump		A4VTG90 / Rexroth / Germany
Model / brand /origin of reducer		P4300 / ZF / Germany
Axle and Tyre
Front axle		Stub axle with double T-cross section
Rear axle		Double reduction with hub reduction and final drive
Ratio		5.26
Tyre size		12R22.5
Clutch And Brake
Single-plate dry coil-spring clutch, hydraulically operated with air assistance
Service brake		Full air brake, dual circuit
Parking brake		Spring actuator at rear wheels
Auxiliary brake		Exhaust brake
Suspension
Front suspension		Tapered leaf spring 09 semi-elliptic leaf spring
Rear suspension		Tapered leaf spring 12 semi-elliptic leaf spring
Steering System
Driving position		Left hand drive only
Type		Re-circulation ball with integral power assisted by oil
Cab
SINOWAY F14 cab with A/C

SWCM64H09 Concrete Mixer Machine 9 CBM Cement and Concrete Mixer Truck

Product Tags:

concrete mixing equipment

commercial concrete mixer

China SWCM64H09 Concrete Mixer Machine 9 CBM Cement and Concrete Mixer Truck wholesale

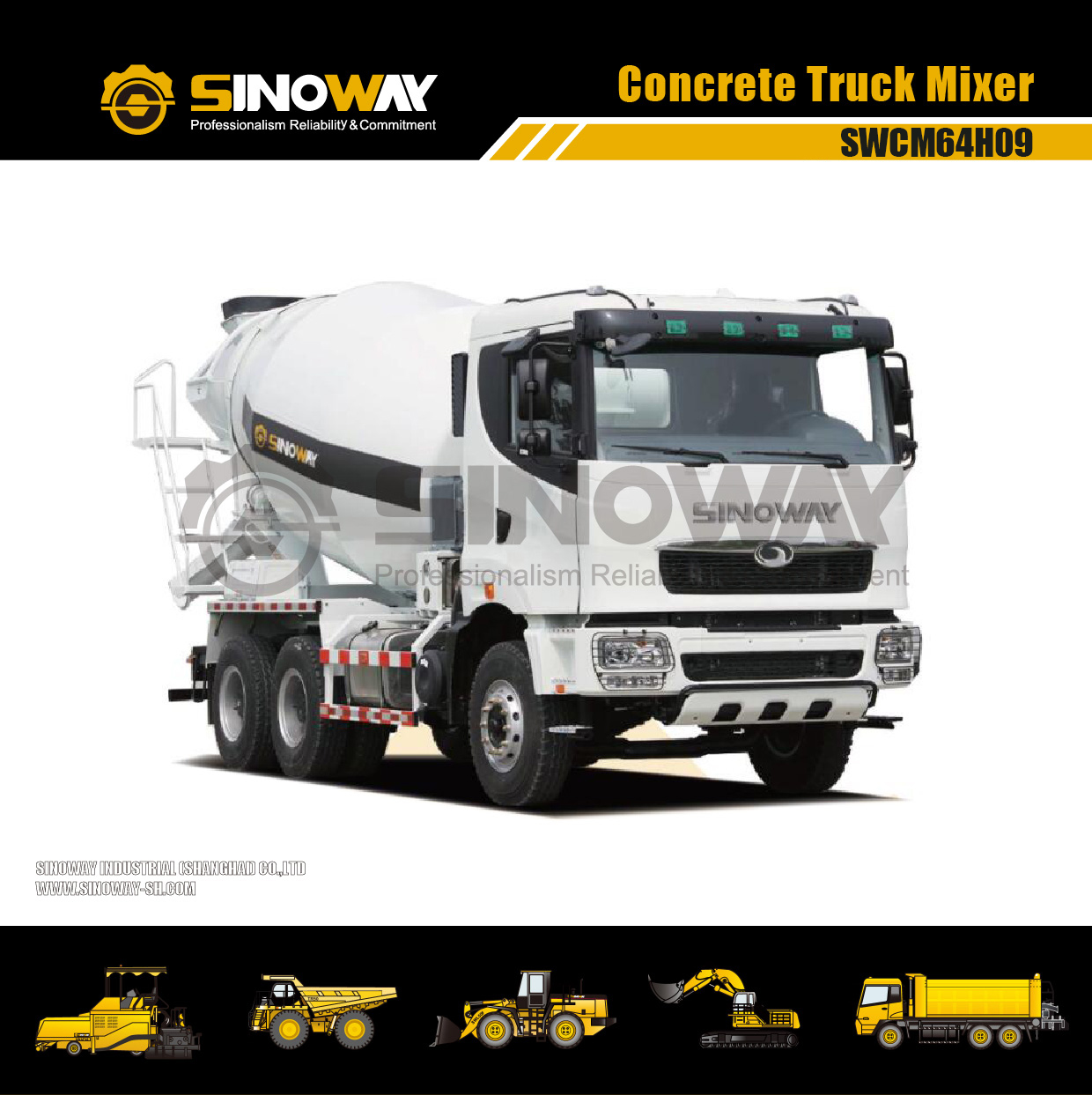

SWCM64H09 Concrete Mixer Machine 9 CBM Cement and Concrete Mixer Truck Images
