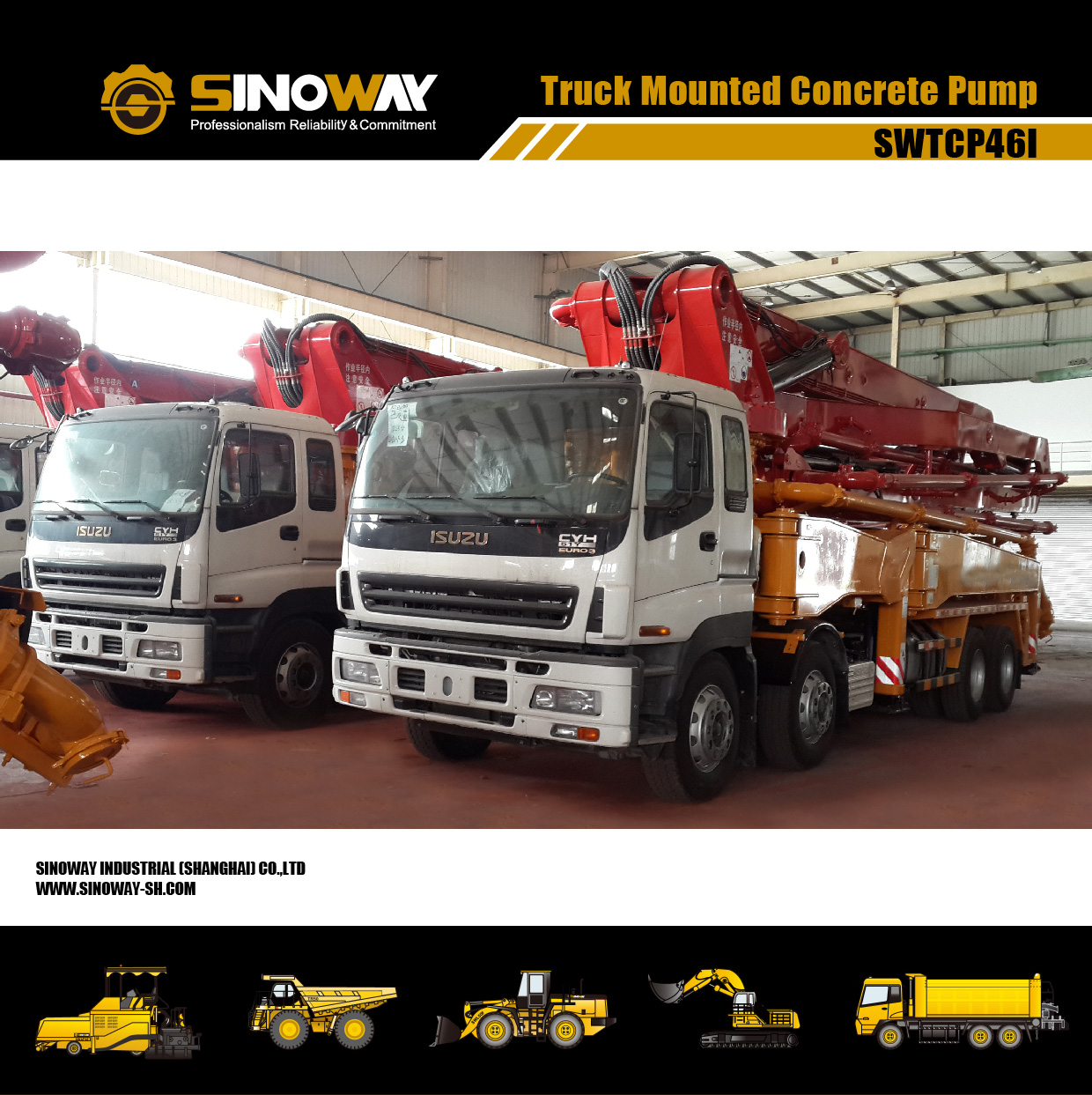

Truck Mounted Concrete Pump 150m³/h Output in Theory S Pipe Valve 289KW Rated Power

Product Categories

Sinoway Industrial (Shanghai) Co., Ltd.

Contact Now

Name: Truck Mounted Concrete Pump 150mh Output in Theory S Pipe Valve 289KW Rated Power
Brand: SINOWAY
Price: 1 USD

Brand Name : SINOWAY

Model Number : SWTCP46I

Certification : ISO9001

Place of Origin : China

MOQ : 1 unit

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 50 units per month

Delivery Time : 30 days

Packaging Details : Nude

Engine : ISUZU

Rated power : 380hp/1800rpm

Max. torque : 1863N.m/1100rpm

Arm support pump : Germany REXROTH

Balance valve : Germany HAWE

Solenoid valve : USA EATON

Contact Now

150m³/h Output in Theory S Pipe Valve 289KW Rated Power Truck Mounted Concrete Pump Concrete Pump Truck

Pumping System
Output in theory	150m³/h
Max. pumping pressure	9.0MPa
Hopper capacity	550L
Feeding height	1450mm
Distributing valve	S pipe valve
Rated work pressure	36Mpa
Pumping frequency	22min-1
Chassis And Whole Vehicle
Max. travelling speed	96km/h
Drive model	8×4
Engine model	Isuzu engine
Rated power	289kw
Rated speed	2200rpm
Max. torque	1863N.m/1100rpm
Displacement	14.256L
Curb weight	34000kg
Wheel base
Axle1, Axle2	1850mm
Axle2, Axle3	4605mm
Axle3, Axle4	1310mm
Boom
Max. distributing radius	40.93m
Max. distributing height	45.6m
Max. distributing depth	34.8m
Height of boom when stretched	10050mm
Distance between front landing legs	8082mm
Distance between rear landing legs	9082mm
Distance between front and rear landing legs	8750mm
Delivery pipe diameter	125mm
Tail hose length	3000mm
Rotary angle of boom	365°
Boom section	5
Rotary angle of each boom section	90/180/180/236/230°
Boom length	8900/7900/7500/8300/8300mm
Main Components
Arm support pump	Germany REXROTH
Oil pump	A4VG180+125
Balance valve	Germany HAWE
Solenoid valve	USA EATON
Hydraulic valve	USA EATON
Sealing element	USA PARKER
Connector	Germany EMB
Hose	Italy MANULI
Proportional multiway valve	Germany HAWE
Wireless romote-control device	Germany HBC
Dimension
Overall length	12145mm
Overall width	2495mm
Overall height	3990mm
Service Capacities
Fuel tank	400L
Water tank	600L
Hydraulic tank	600L

Truck Mounted Concrete Pump 150m³/h Output in Theory S Pipe Valve 289KW Rated Power
